Plant Cell Culture
Overview
-
Description

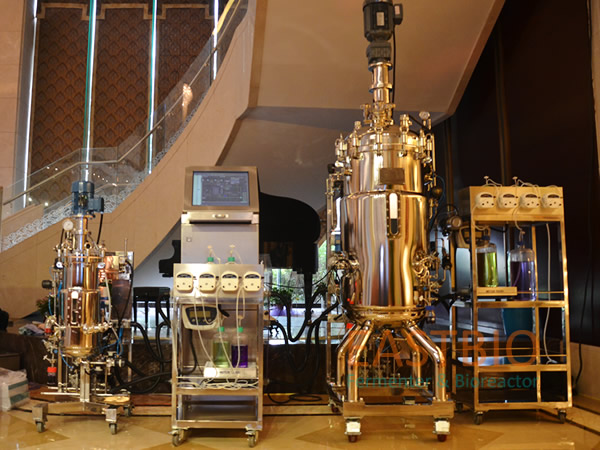

CPJS Series plant cell culture bioreactor
-
Feature
Advanced performance and compact structure
-
Applications
Cell Culture and/or Metabolite Production of Taxus, Changchun Flower, Tobacco, Ginseng and Other Plants
-
Applicable objects
Widely applicable to colleges, research institutes, and enterprises
Specifications
| Item | Descriptions |
|---|---|
| Total Volume | 5L, 7L, 10L ... 300L, 500L, 1000L |
| Loading Coefficient | 65-80% |

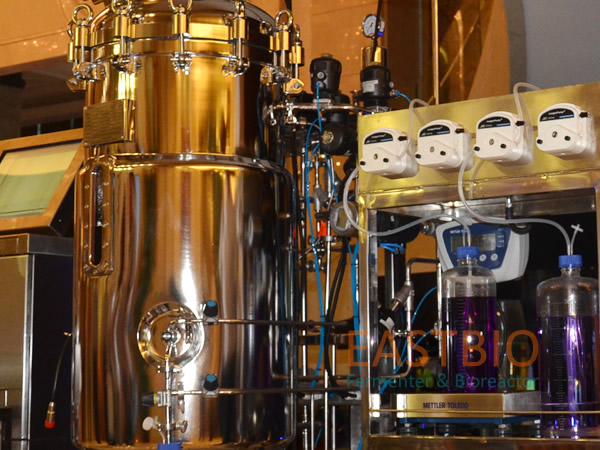

| Vessel | SS316L material (glass material can be selected for 5L and 10L); Jacket temperature control, high heat exchange efficiency, with external insulation layer; Internal surface electrolytic polishing, Ra≤0.4μm; External surface polishing or matte (glass blasted); PH electrode, DO electrode, and temperature electrode interfaces are complete |
| Agitator | Top in mechanical mixing system; Sterile machine sealing system (double end face machine sealing can be selected for 50L and above); P-mix special stirring blades; Adjustable speed, digital setting speed control |
| Structure | Floor standing frame structure, compact structure, beautiful appearance, and convenient operation |
| Areation | Four way gas mixed infiltration system; MFC automatically controls gas flow; Equipped with high-efficiency sterile filter, with filtration accuracy 0.01μm |

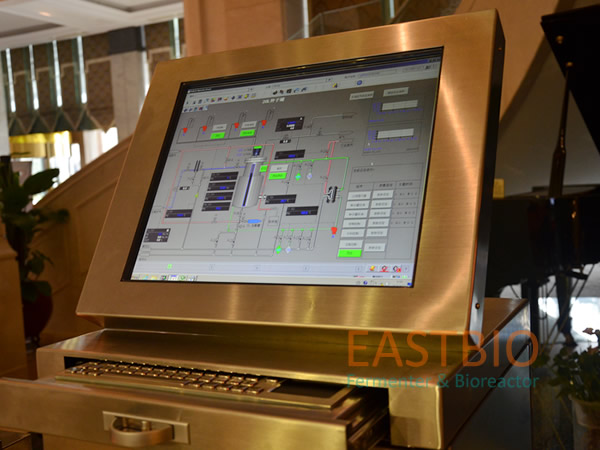

| Control System | Application of industrial grade Ebio control system, using Siemens PLC controller, 32-bit true color touch screen operation interface, fully functional and stable operation |
| SIP | Program controlled fully automatic sterilization system (AUTO-SIP) |
| CIP | Equipped with high-quality rotating spray balls, with hygienic interface can be connected to CIP stations externally |
| Options | 1.Multiple feed; 2.Feed weighing; 3.Vessel weighing / Liquid level sensor 4.Online detection of various parameters such as turbidity and live cells; 5.Online detection of exhaust gas: O2 and CO2 content |
| Characteristic | Adopting imported sanitary grade sterile diaphragm valves, and adopting full position automatic welding process for pipelines; Flexible configuration, powerful functionality, simple operation, and easy upgrade and expansion |
